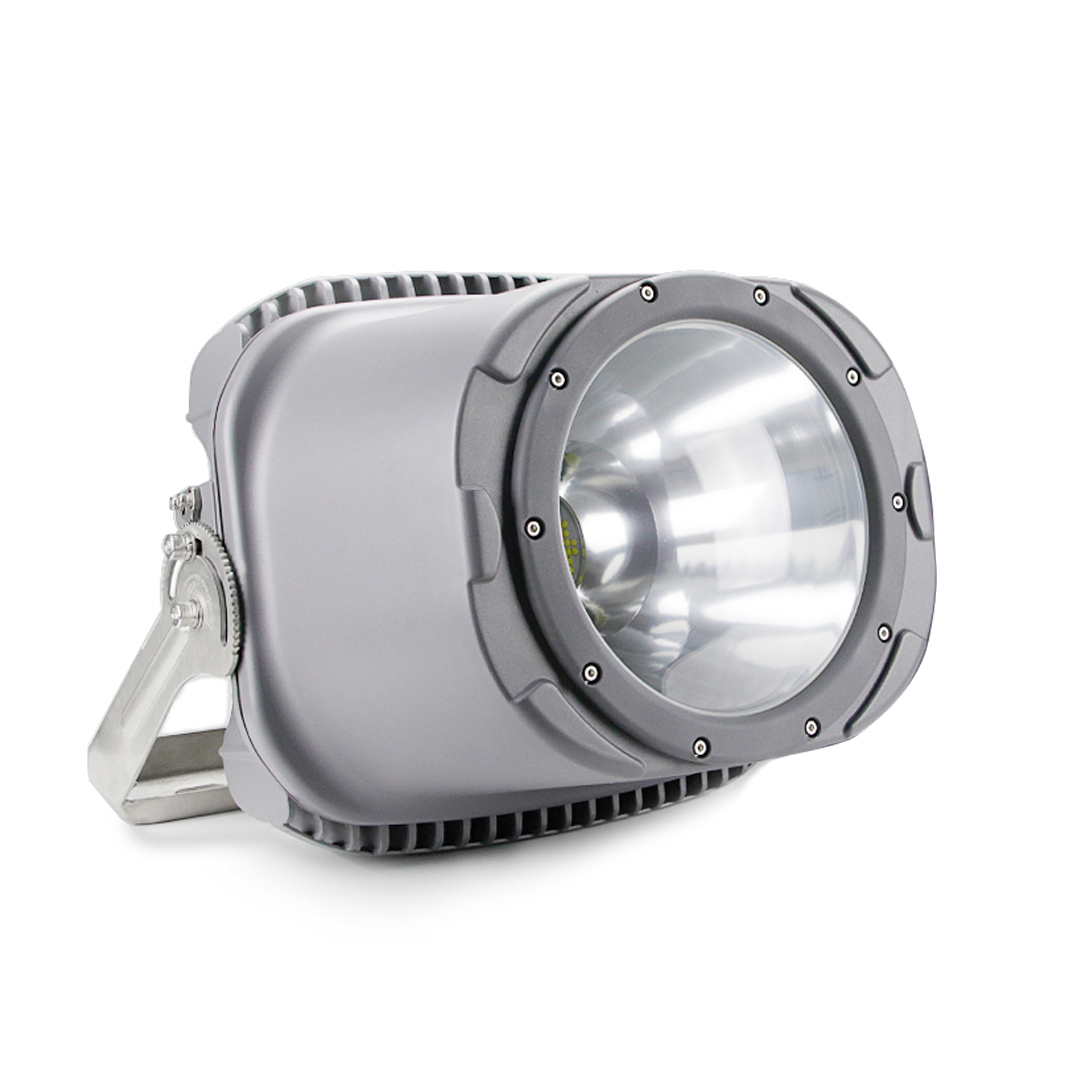

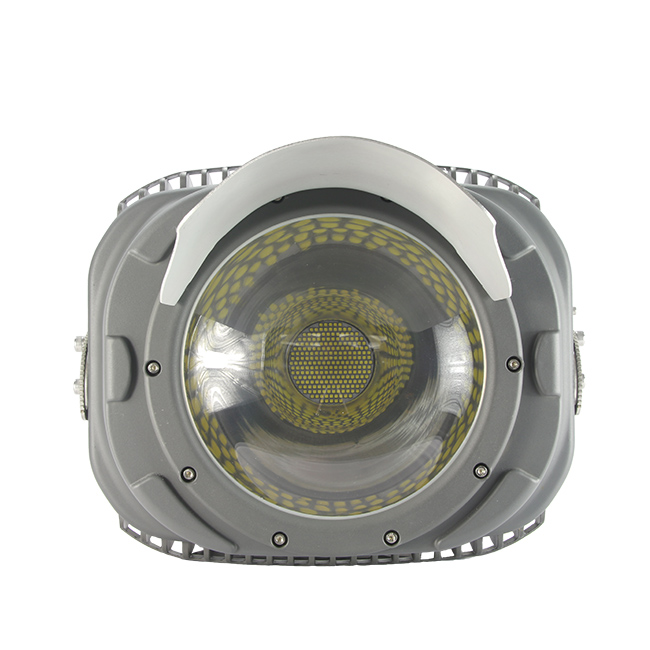

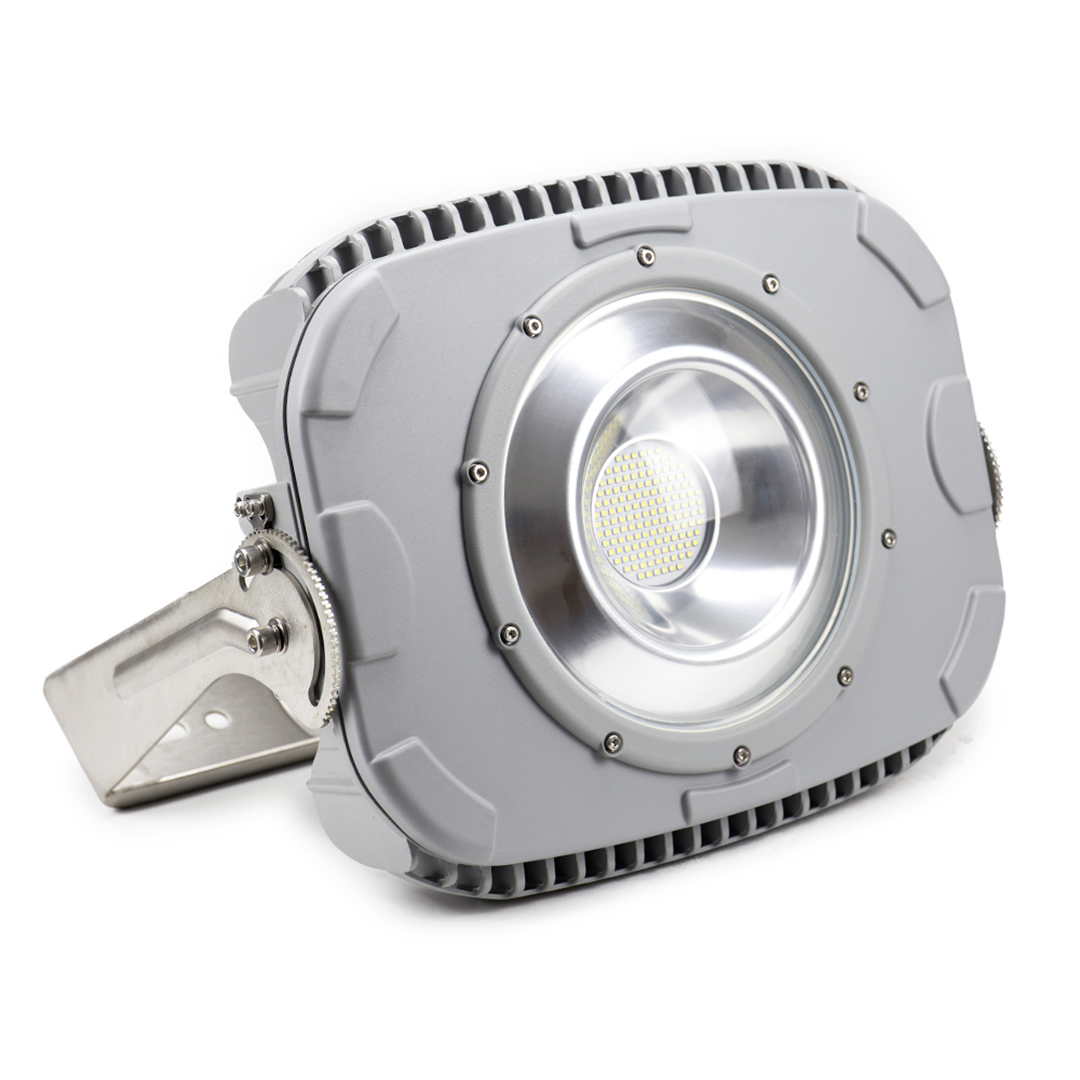

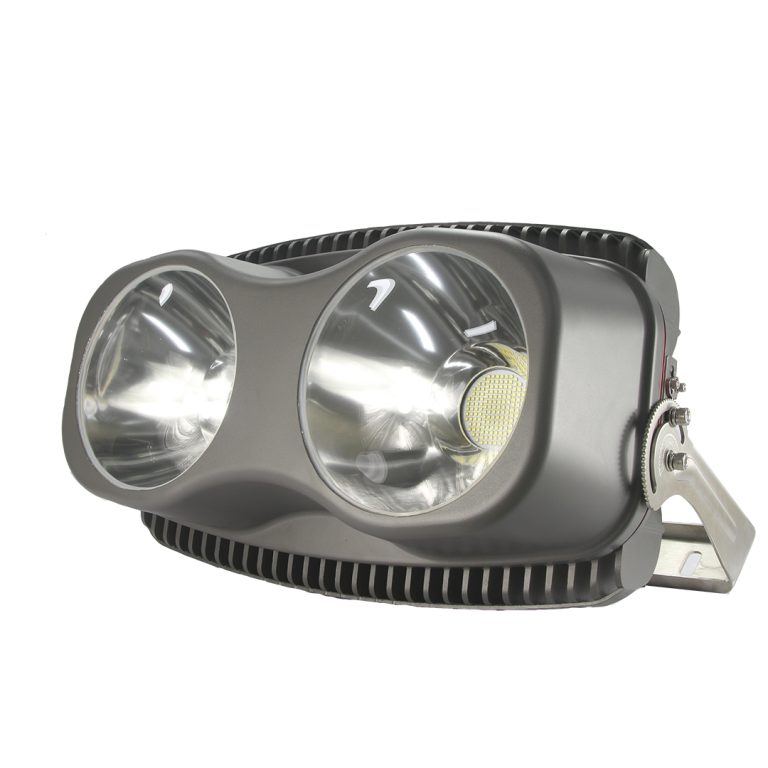

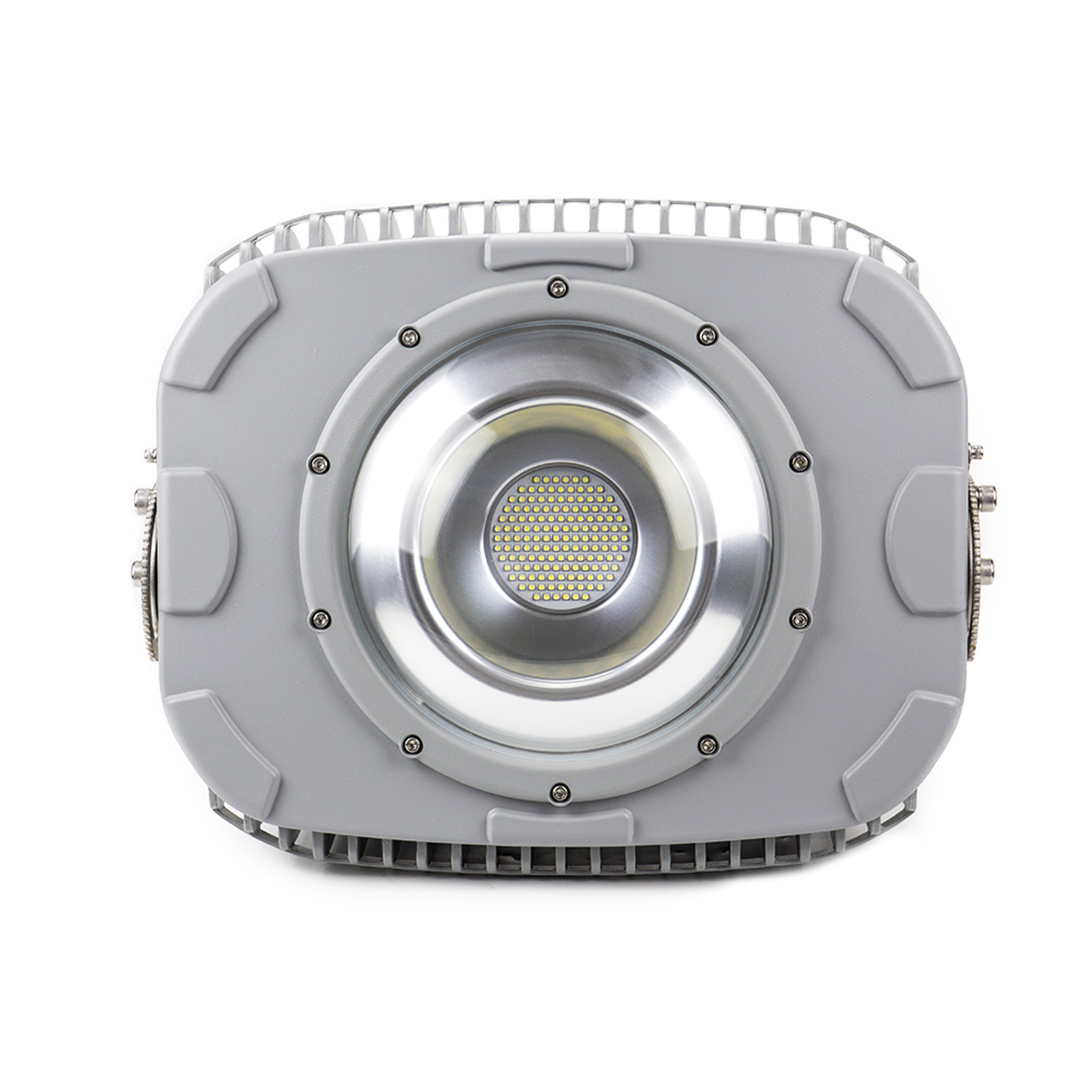

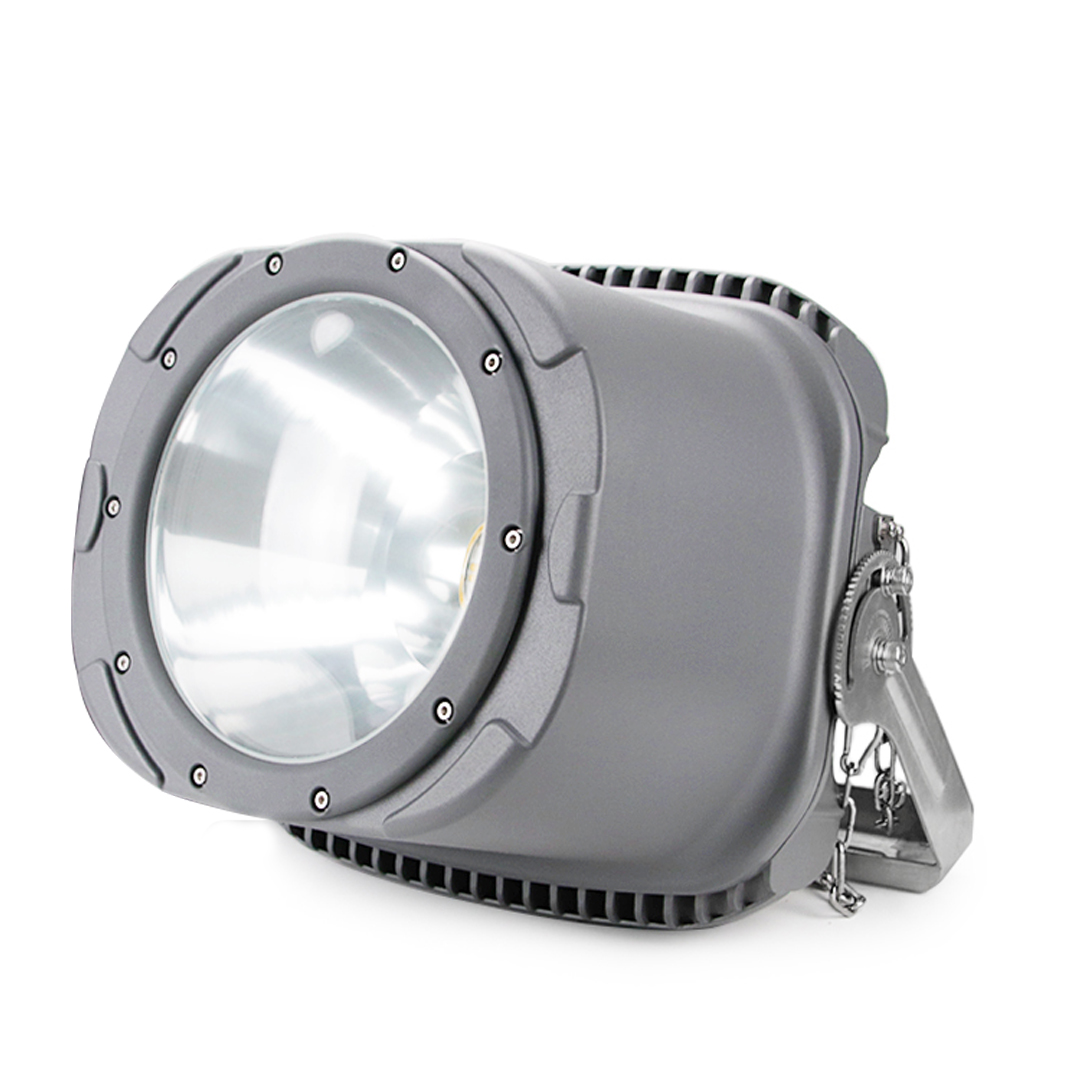

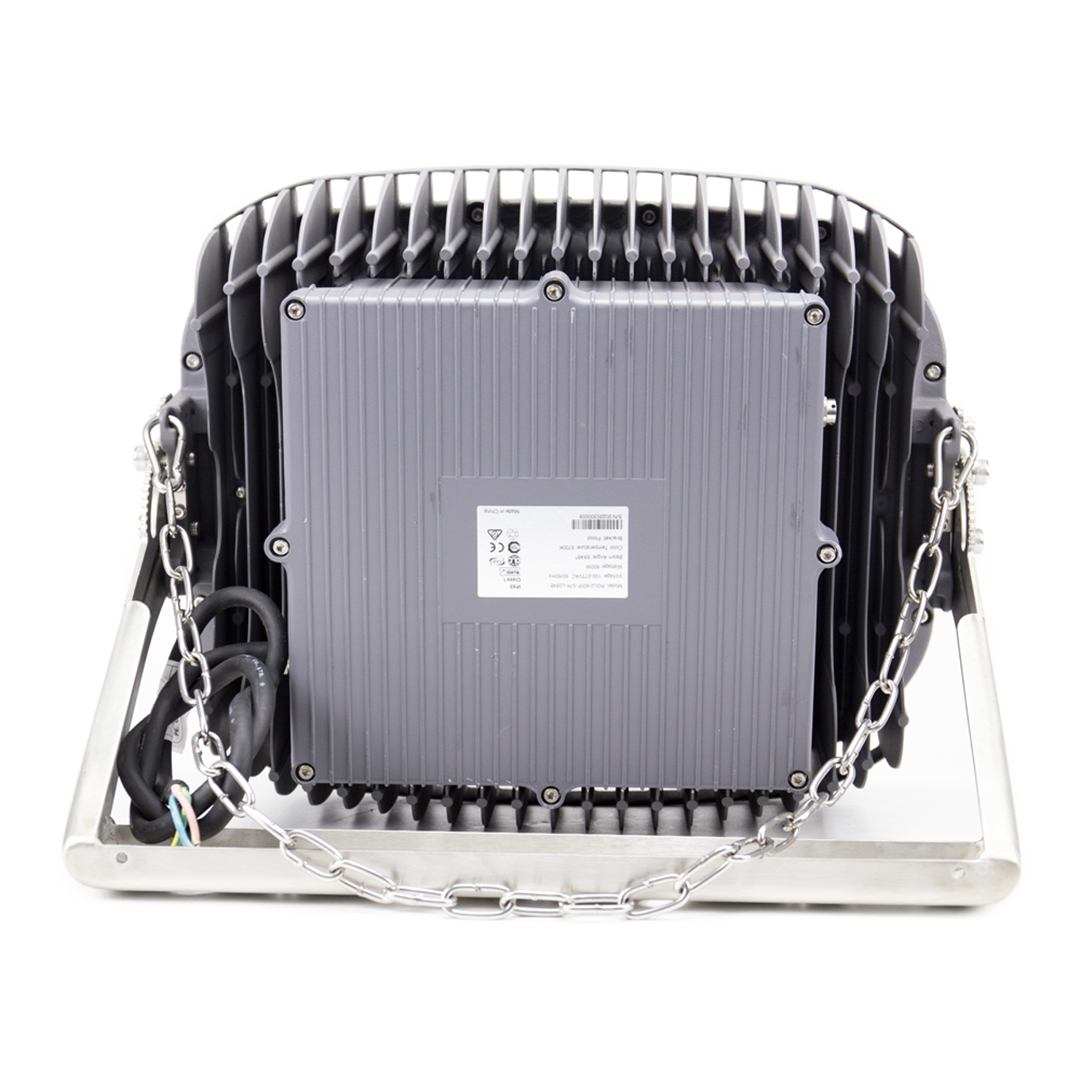

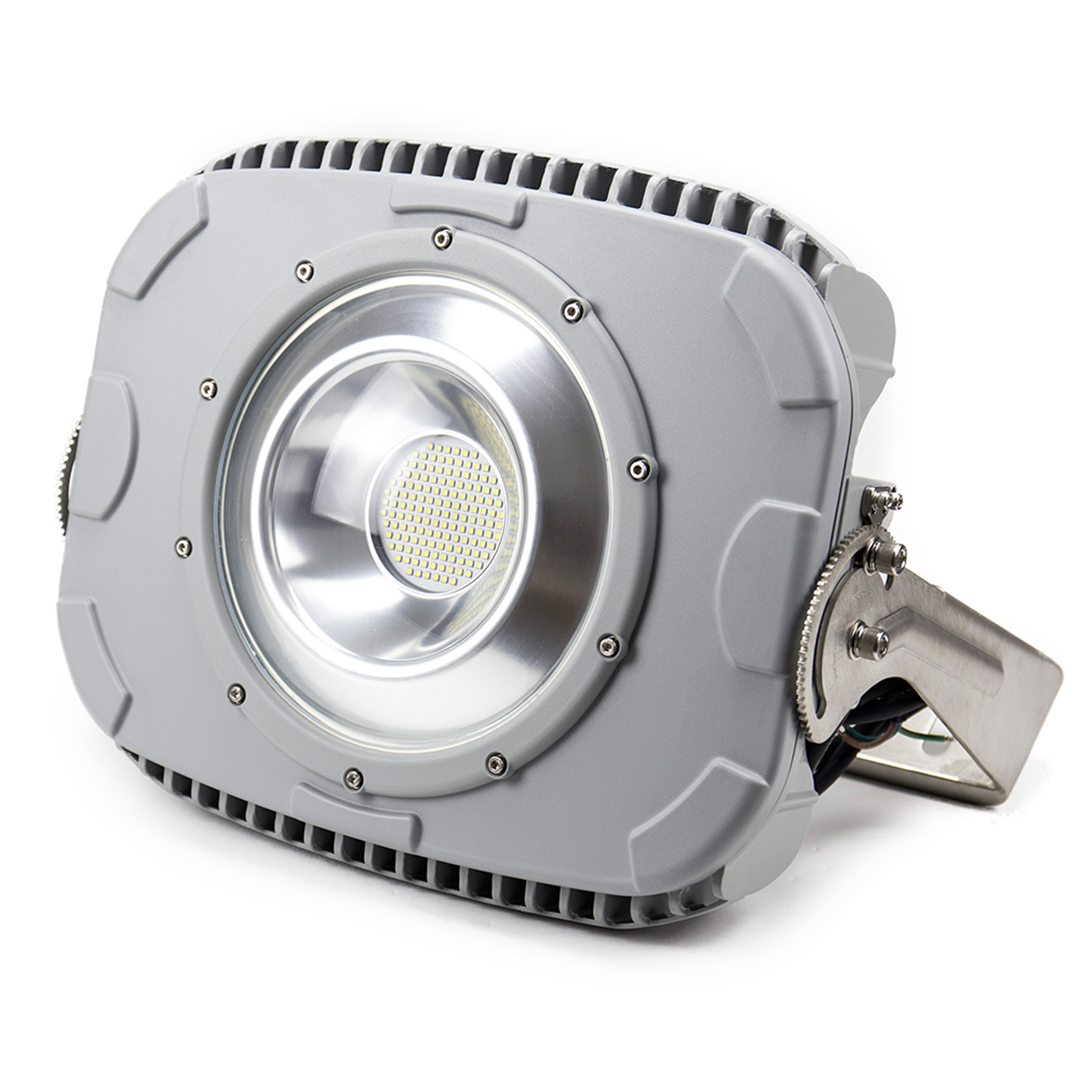

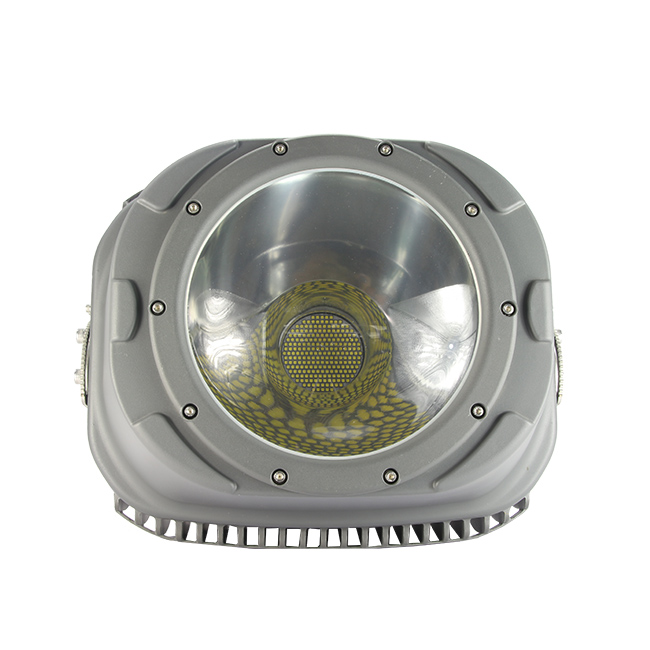

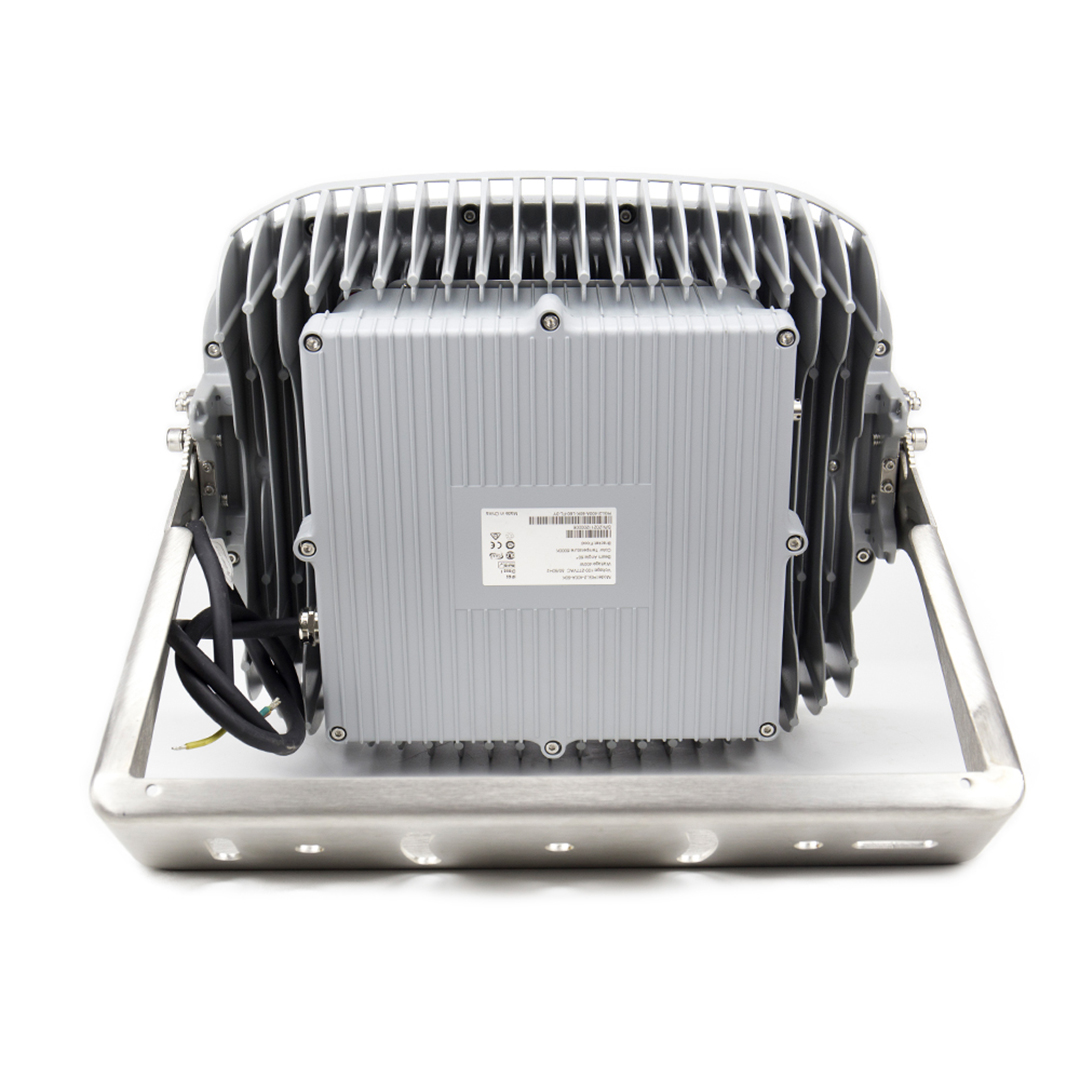

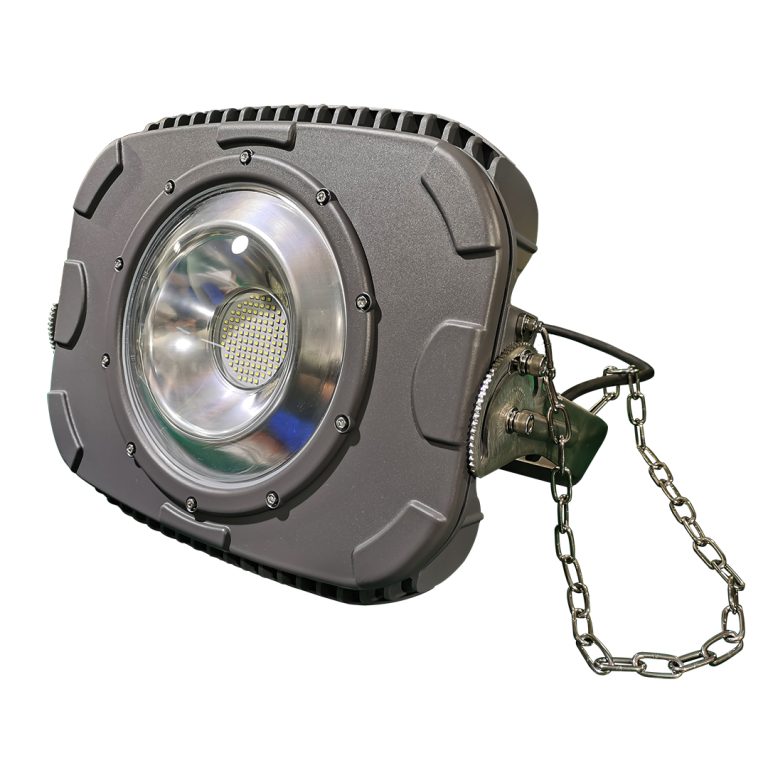

RGL2 Series 500 Watt LED Marine Boat Bow lights feature a more advanced thermal dissipation solution, and narrower beam angle, as well as 316 stainless steel bracket rotatable 360°, Die-Casting Aluminun housing with anti-corrosive powder coating, also with Ultra Lightweight, Highly Efficient Heat Dissipation, and Multiway Air Flow+ Aluminum Cooling Finexternal ensure an superior heat dissipation.

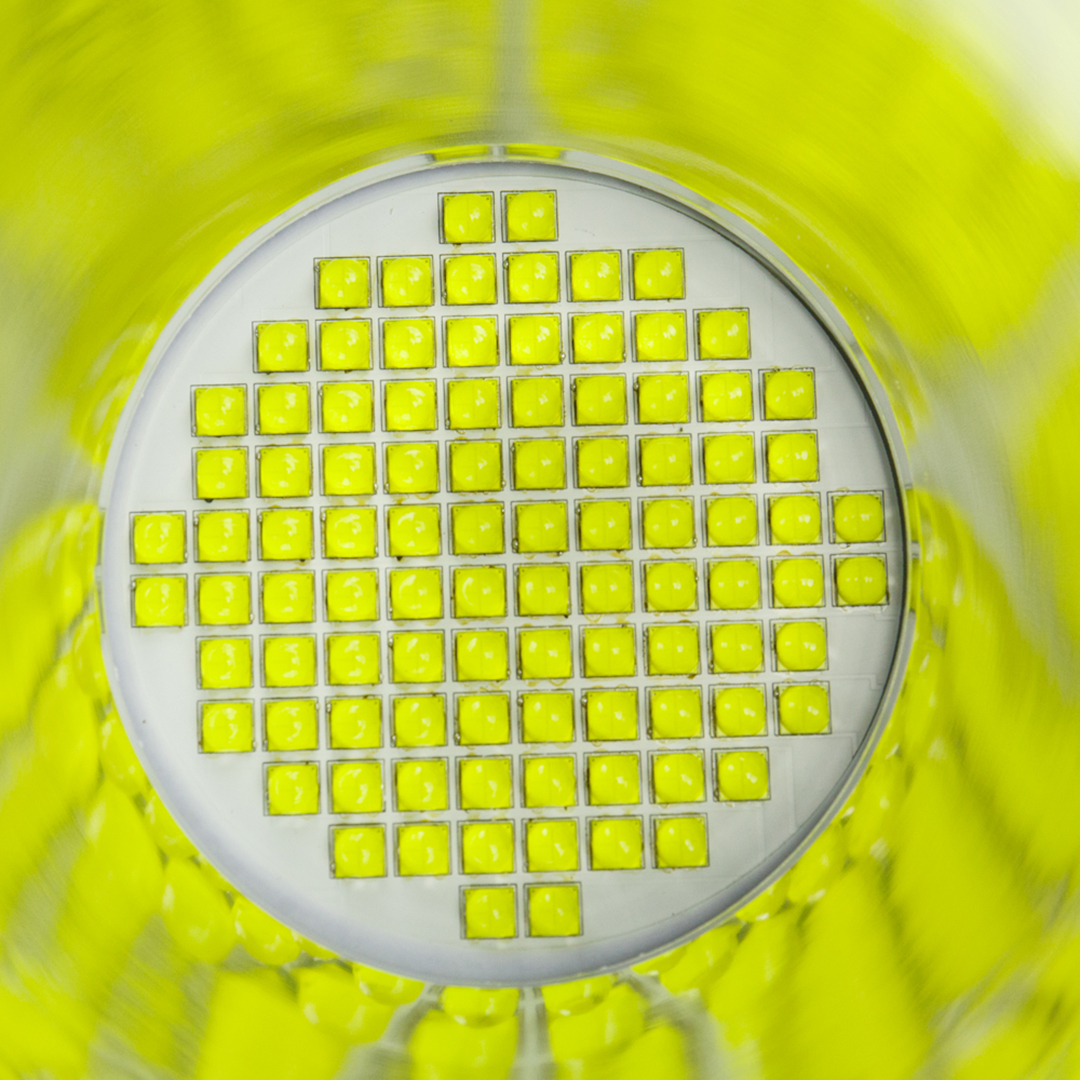

SAMSUNG LED Chip
MEANWELL LED Driver
Die-casting aluminum lamp housing with power coated finish
316 stainless steel bracket
Unique and exquisite industrial design
Up to 1200w power options
Professional light distribution
80% lumen maintenance over 50,000hours
110-480Vac input voltage without additional adapter
0-10VDC, DALI and wireless control available
Photocell & motion sensor system available
Built-in surge protection & thermal protection
High uniformity & color rendering index

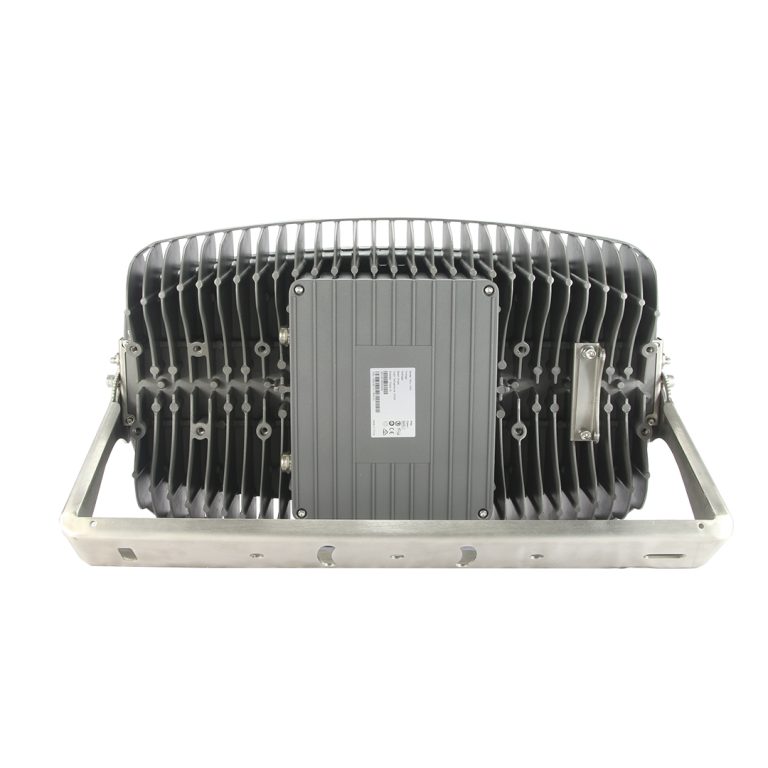

Multiway Air Flow+ Aluminum Cooling Fin
Typical Application
LED boat deck lighting
LED Marine Bow Lighting
LED port lighting
LED crane lighting
LED sports stadium lighting
LED architectrue lighting
LED tunnel lighting
LED shipyard lighting
LED bridge lighting
LED parking lot lighting
LED petrol stadion lighting
LED cold storage lighting
LED high mast lighting
LED warehouse lighting
Technical Specifications
Model
RGLM-500A
Power
500W
Beam Angle Options
40°, 60°, 120°
Luminous Flux
~65,000 lm (130lm/W)
Input Voltage
AC 100-305V / 50-60Hz
LED Chip
Samsung/Lumileds SMD
Driver
Meanwell / Inventronics (optional)
Housing Material
Anti-corrosion aluminum alloy
Bracket
A4 Stainless Steel 316
Ingress Protection
IP67
Impact Rating
IK10
Working Temp
-40°C ~ +55°C
Weight
22kg
Warranty
3-5 years (optional)
Certifications
CE, RoHS, RMRS (optional)
Download
IES File (ZIP)
Spec Sheet (PDF)
Installation Manual (PDF)
Key Features
Flexible Beam Angles – Available in 40°, 60°, and 120° for both long-range targeting and wide-area illumination, ideal for crane lighting, ship masts, and large decks.”
40° Narrow Beam – Focused illumination for long-distance tasks such as crane operation or high-mast lighting.
60° Medium Beam – Balanced throw and spread, ideal for general-purpose lighting on deck and work areas.
120° Wide Beam – Wide-area coverage perfect for large deck areas and shipyard applications.
Marine-Grade Durability – Special anti-corrosion coating + stainless steel 316 bracket ensures long lifespan even under salt spray and humidity.
Optional Beam Angles – Available in 40°, 60°, and 120°, allowing you to adapt based on your layout and height.
Smart Control Ready – Supports 0-10V / PWM / DALI dimming options for energy efficiency and intelligent systems.

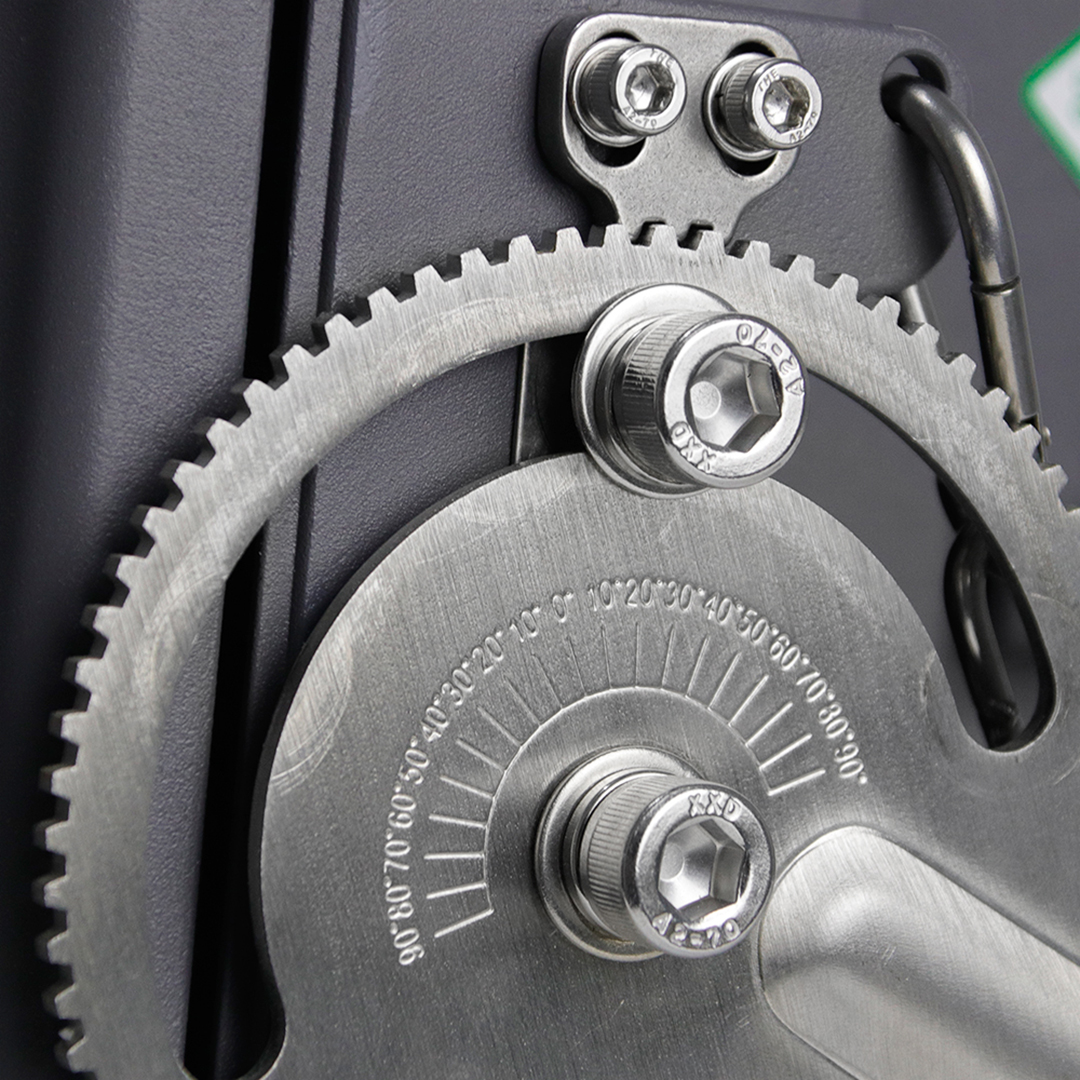

Flexible Mounting – U-bracket design allows wall, ceiling, or pole mounting with angle adjustment.
Real Application Gallery

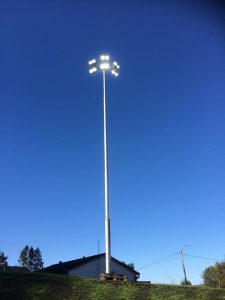

800w high mast lighting on large area

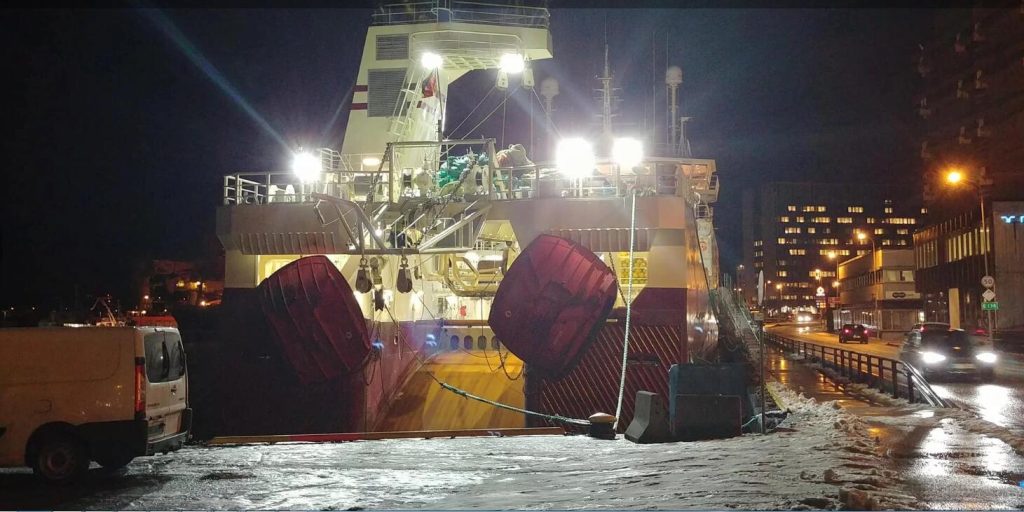

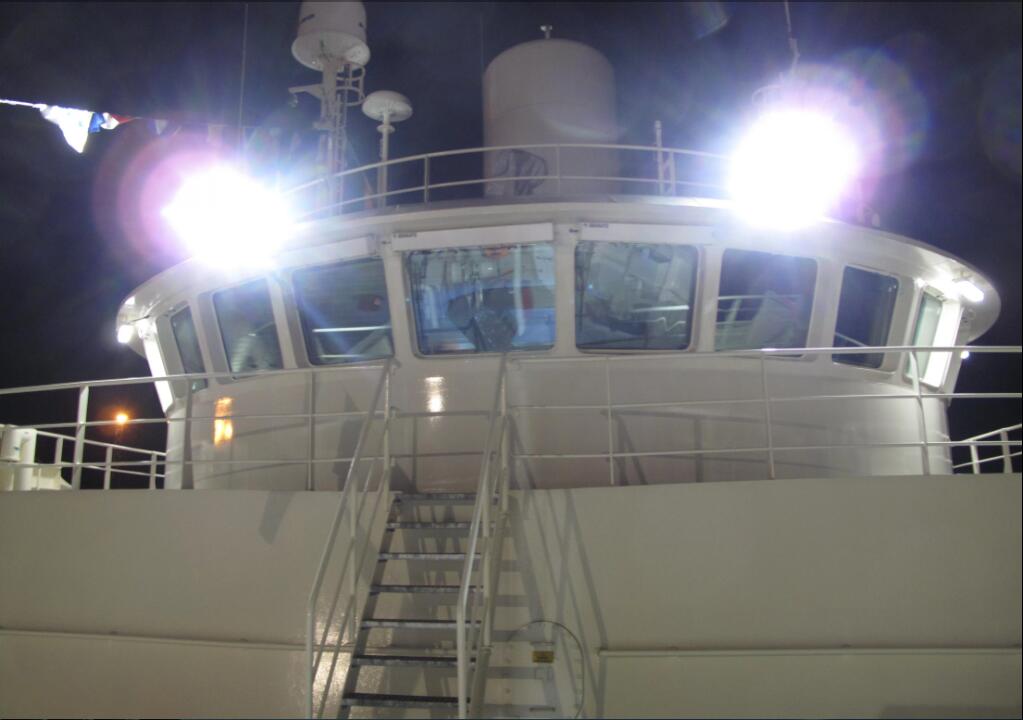

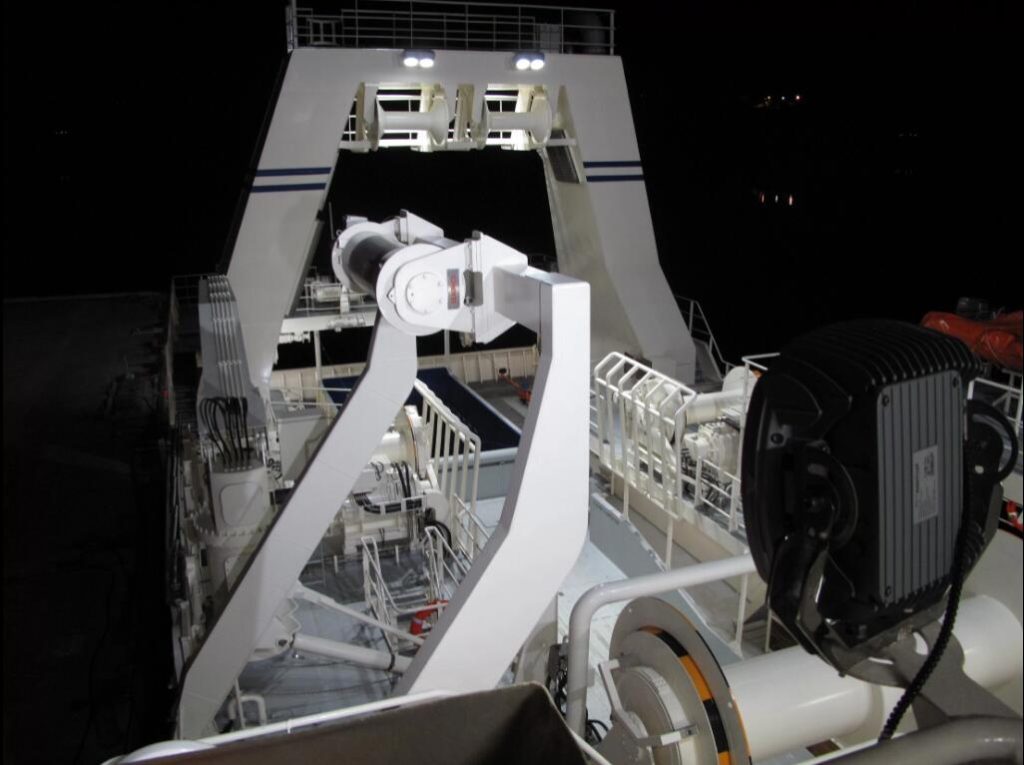

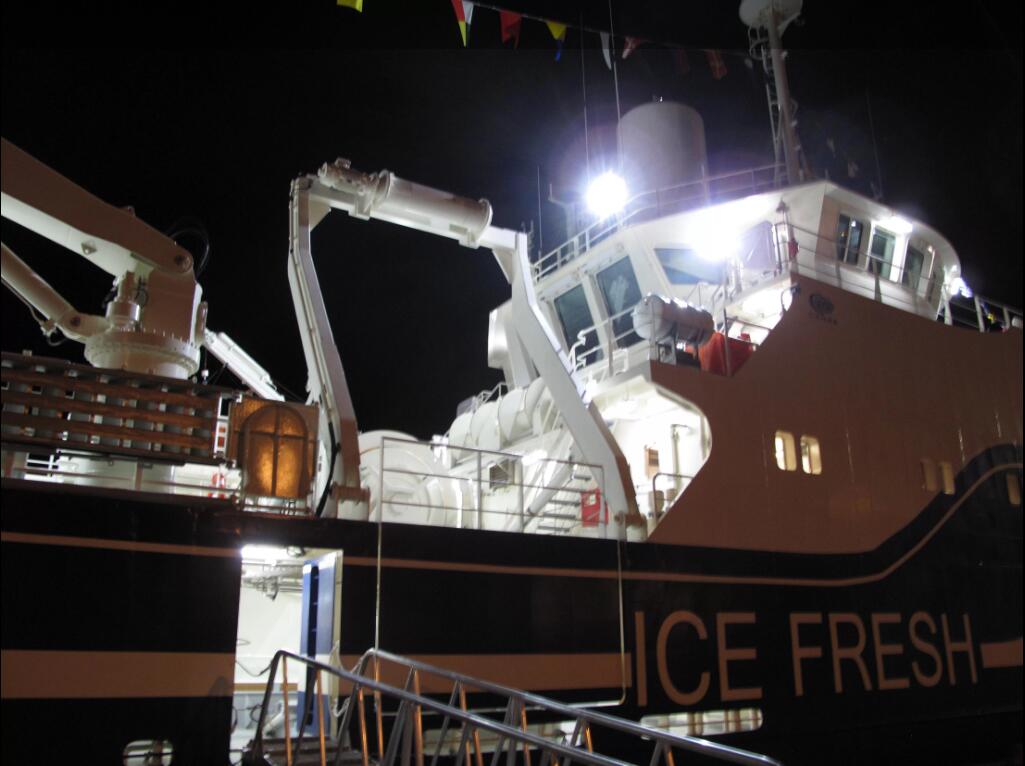

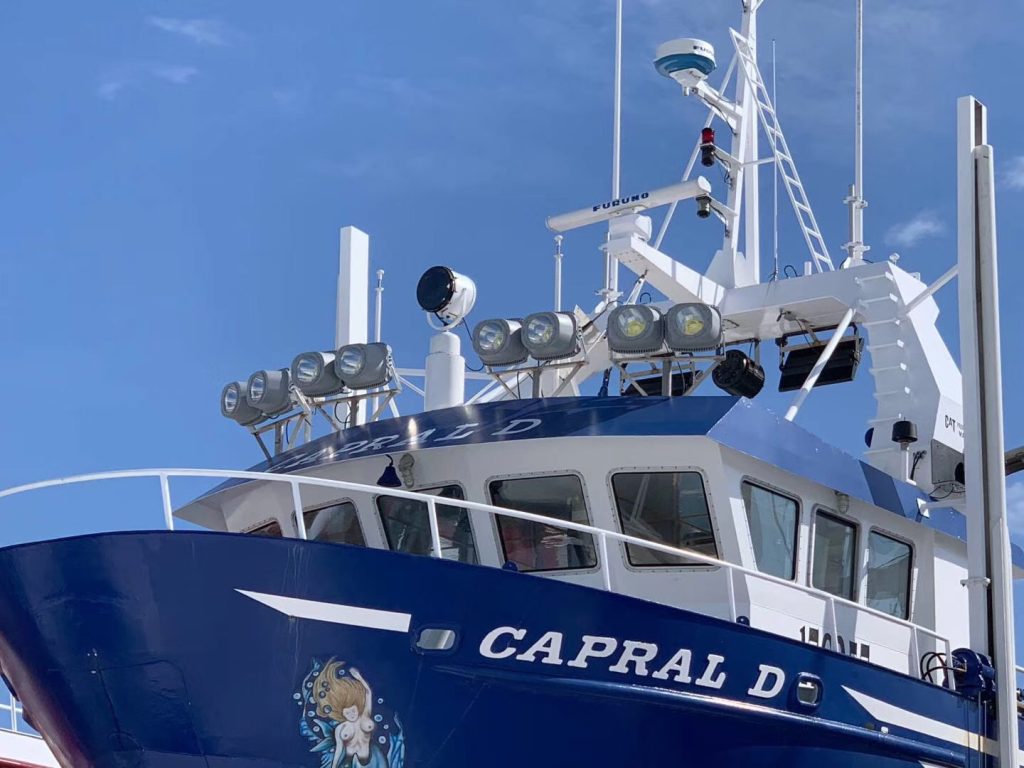

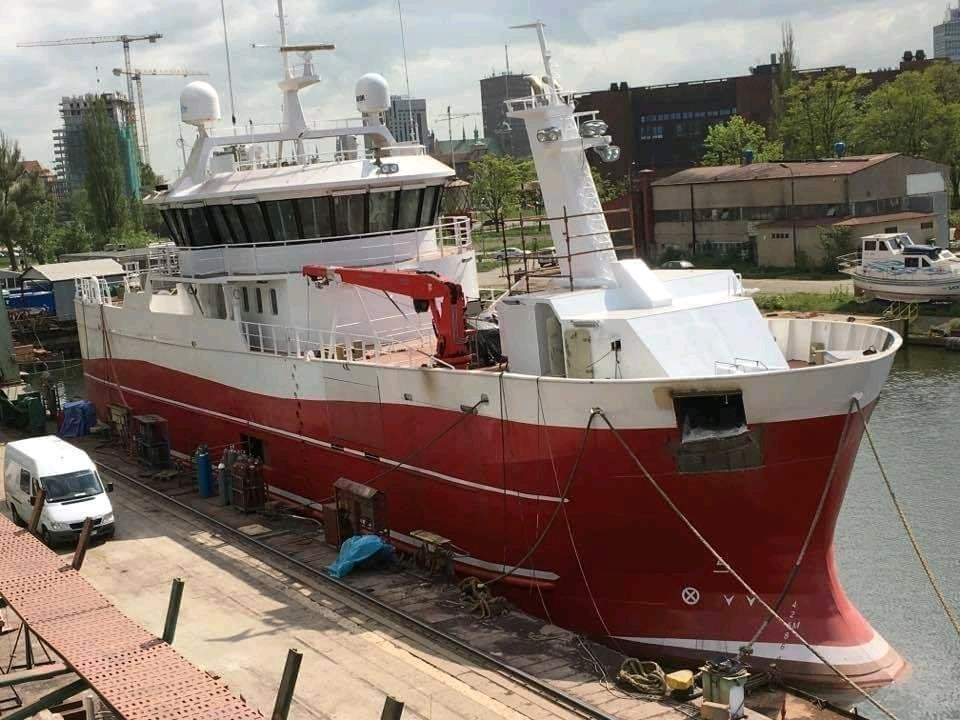

400W marine LED floodlight on Fishing Boat

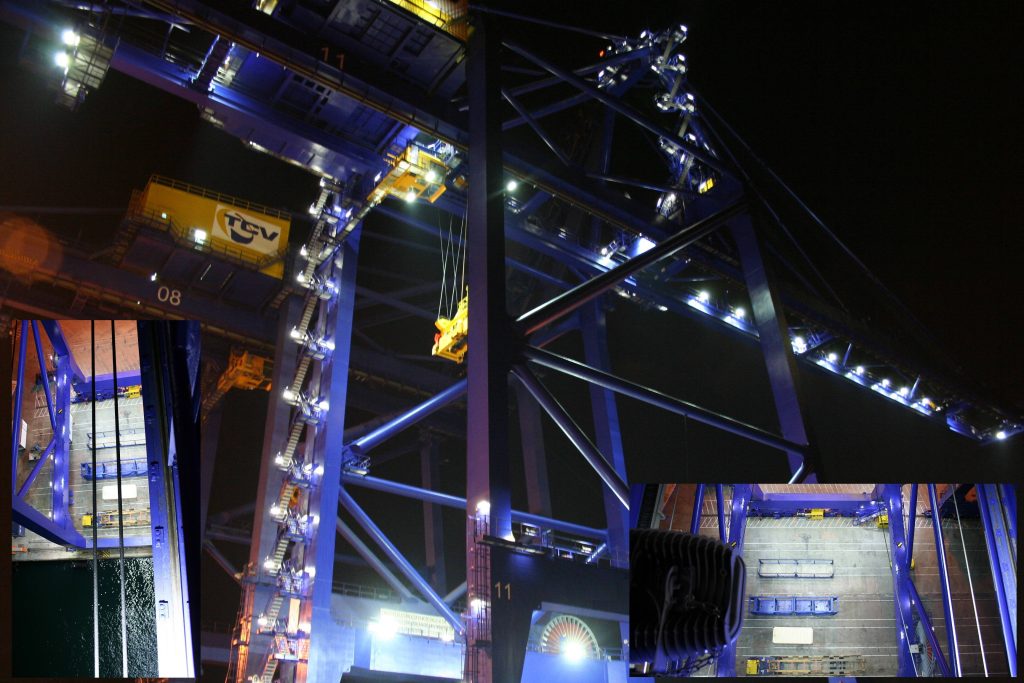

400w led flood light on port sts crane

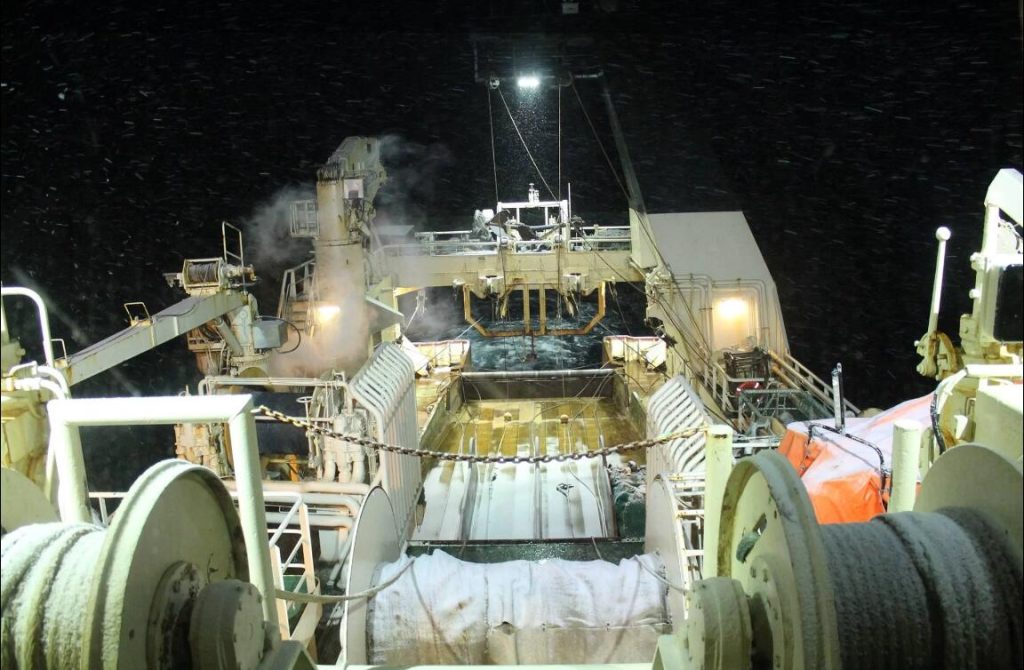

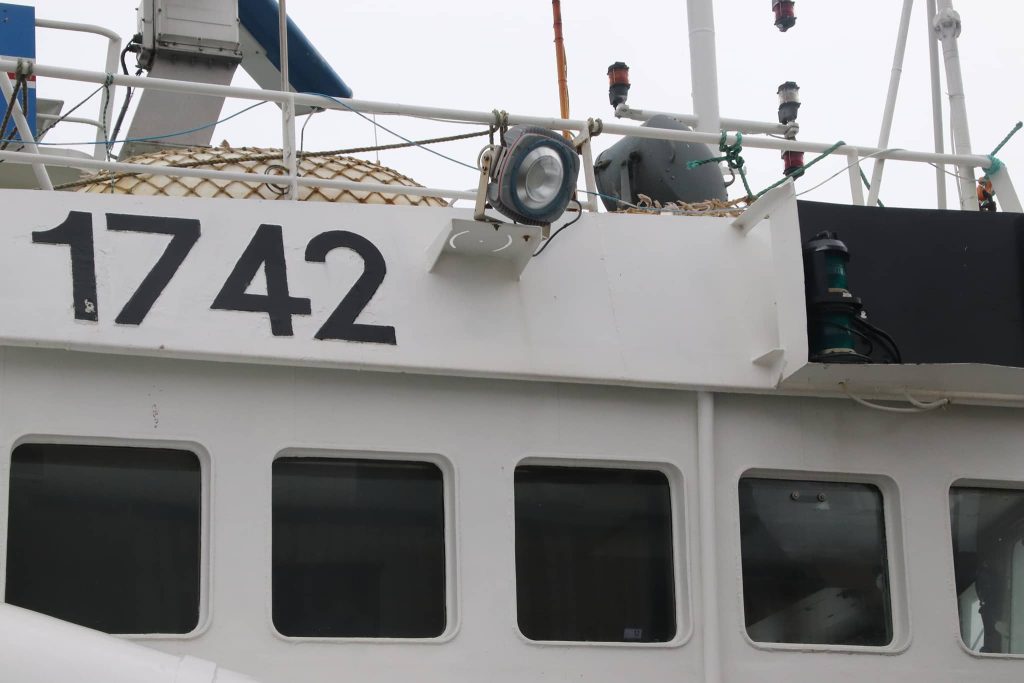

180W marine LED floodlight on Fishing Boat
Photometric Performance (20° beam)
📈 Peak Illuminance @ 10m: ~12,800 lux 📈 At 20m height: ~3,200 lux over ~15m throw distance
